Half Bridge Resonant SMPS delivery 500W - 650W Power

Half Bridge resonant SMPS

Roll over and scroll on image to zoom

Half Bridge resonant SMPS

Connex Electronic

69,99 € zzgl.MwSt
83,29 € inkl. MwSt.

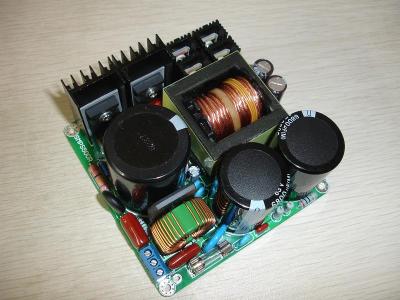

Half Bridge resonant SMPS capable of delivering 500W continuous and 650W peak power. The stock available output voltages are adjustable within +-10% range. It uses zero-voltage switching half bridge resonant topology. The main advantage is lower size and cost compared with a similar regulated SMPS and better efficiency, up to 95% compared with the regulated SMPS's due to the fact that the transistors are soft-switched, and the current through the switches has sinusoidal shape, and there are no output inductors. The SMPS features overcurrent protection which limit the output current at about 130% of the maximum peak power, about 800W. For best performances, there are two power supply versions, one for 110V mains supply voltage and one for 230V mains voltage, knowing the fact that some universal mains power supplies rely on voltage doubling when is used with 110V input, this lowering the global efficiency and maximum power capability. This power supply is suitable for both class AB and class D/T amplifiers, which have the PSRR greater or at least 54dB. Target applications for this power supply unit include the TA3020 based amplifiers and IRS2092 amplifiers for the +-54V version and multiple TDA892x or TA2022 amplifiers for the +-27V or +-31.5V version.

Mains Voltage 230 Output Voltage 65
